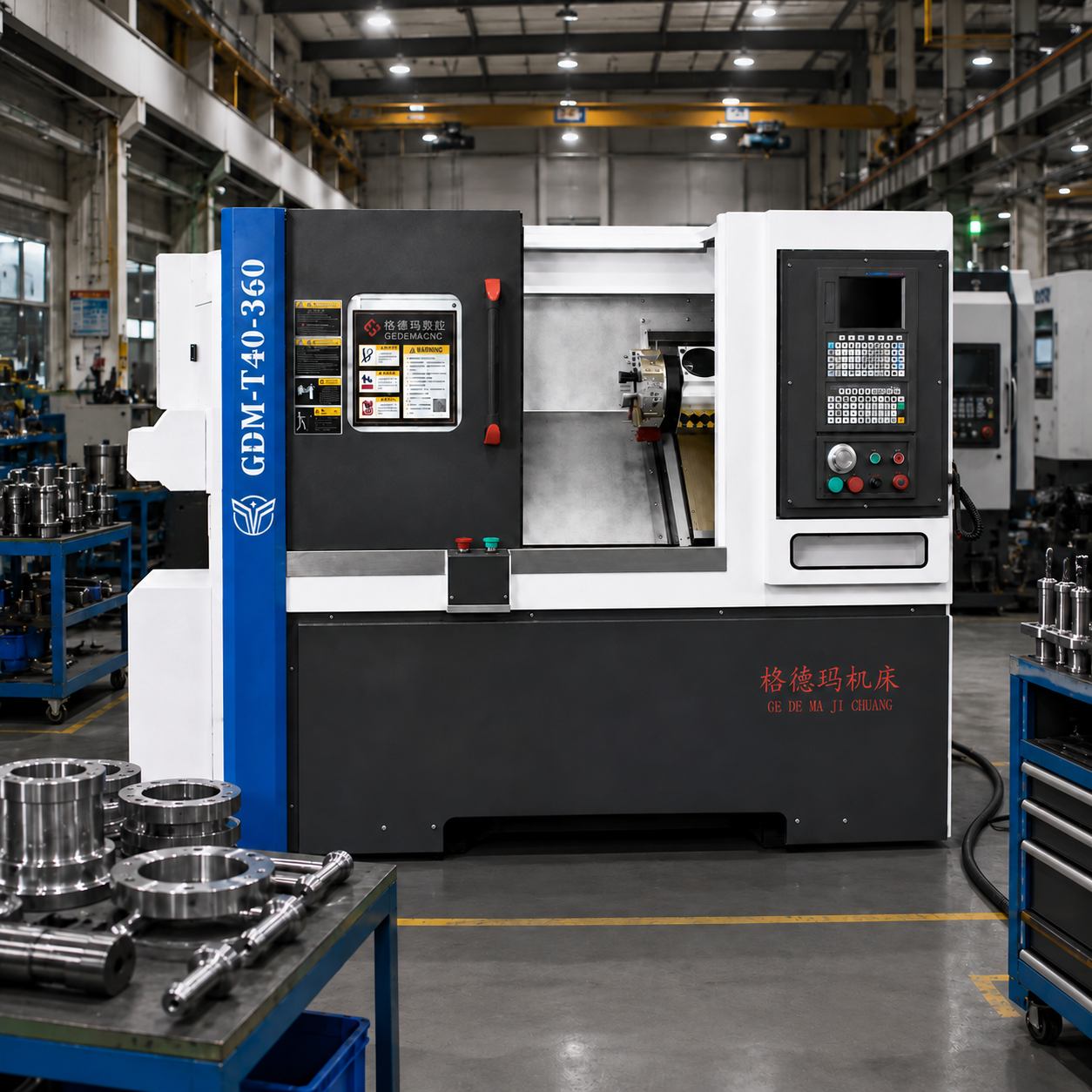

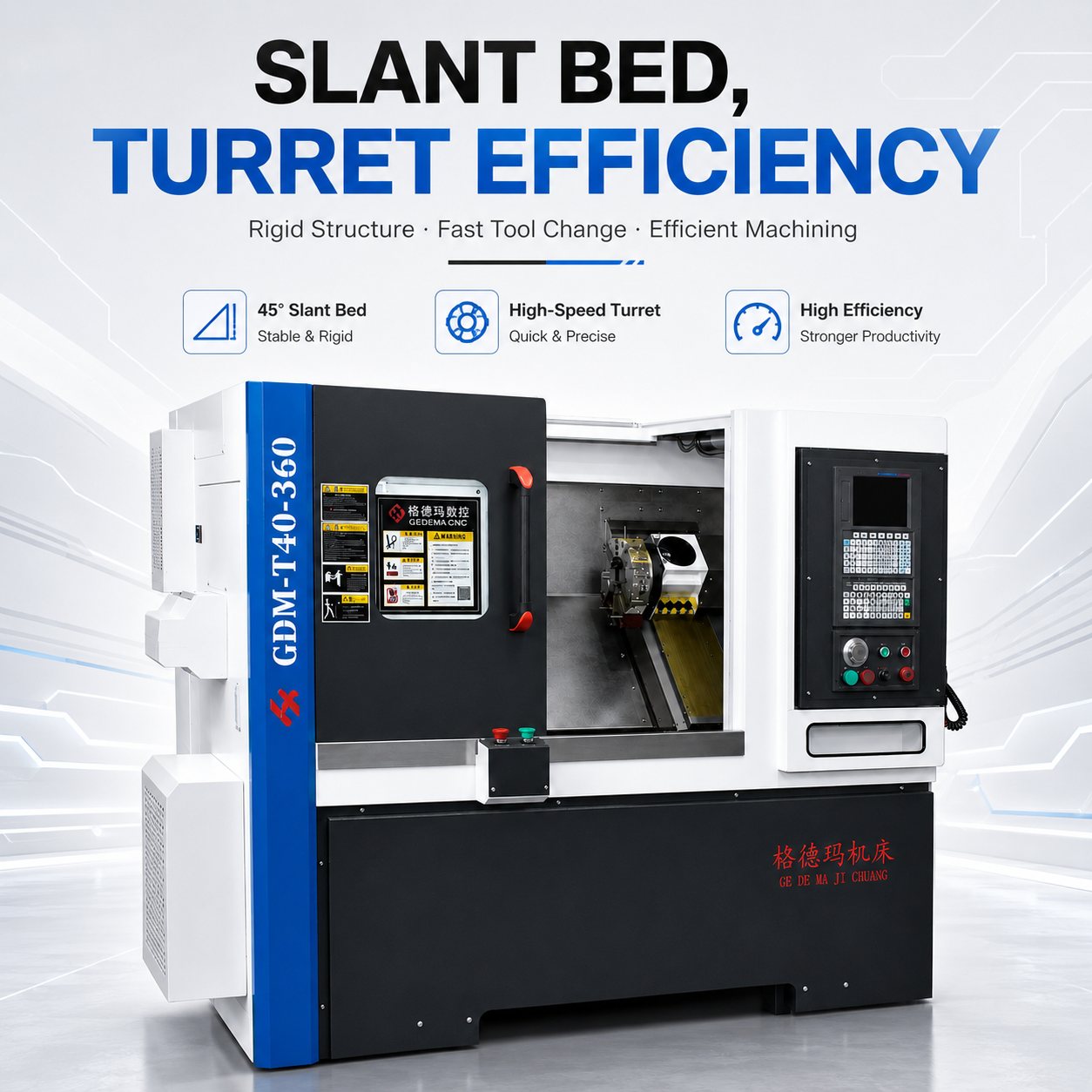

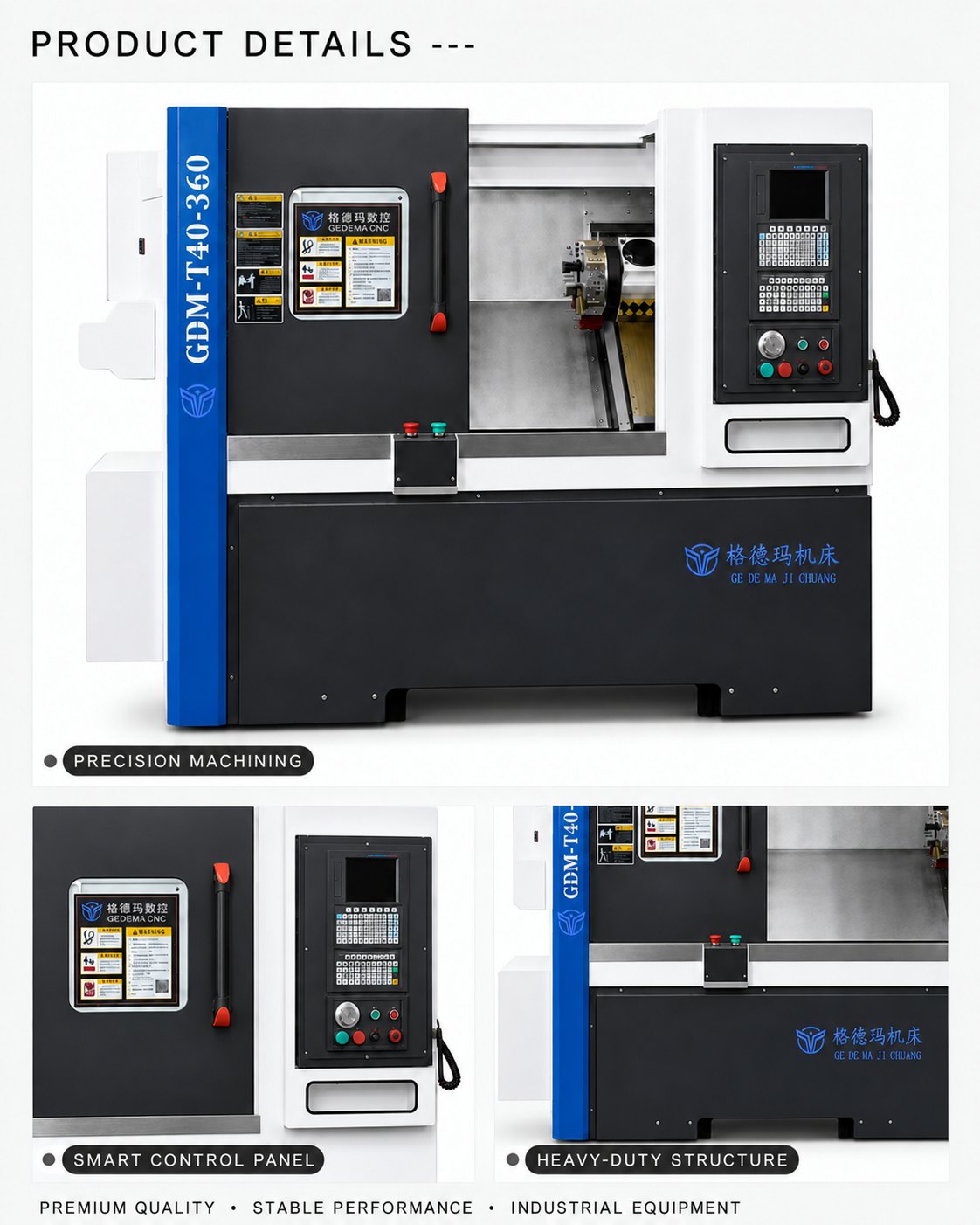

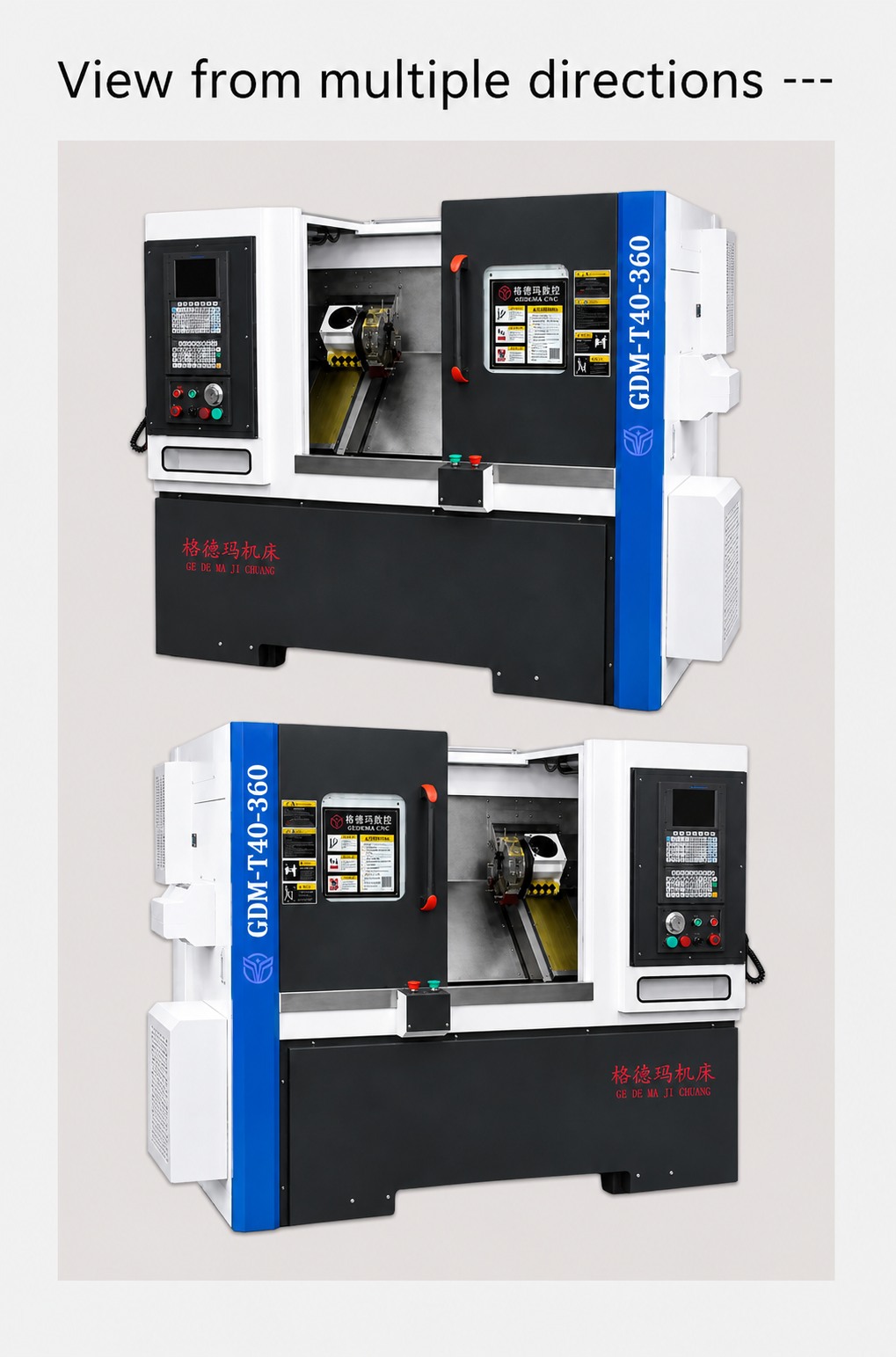

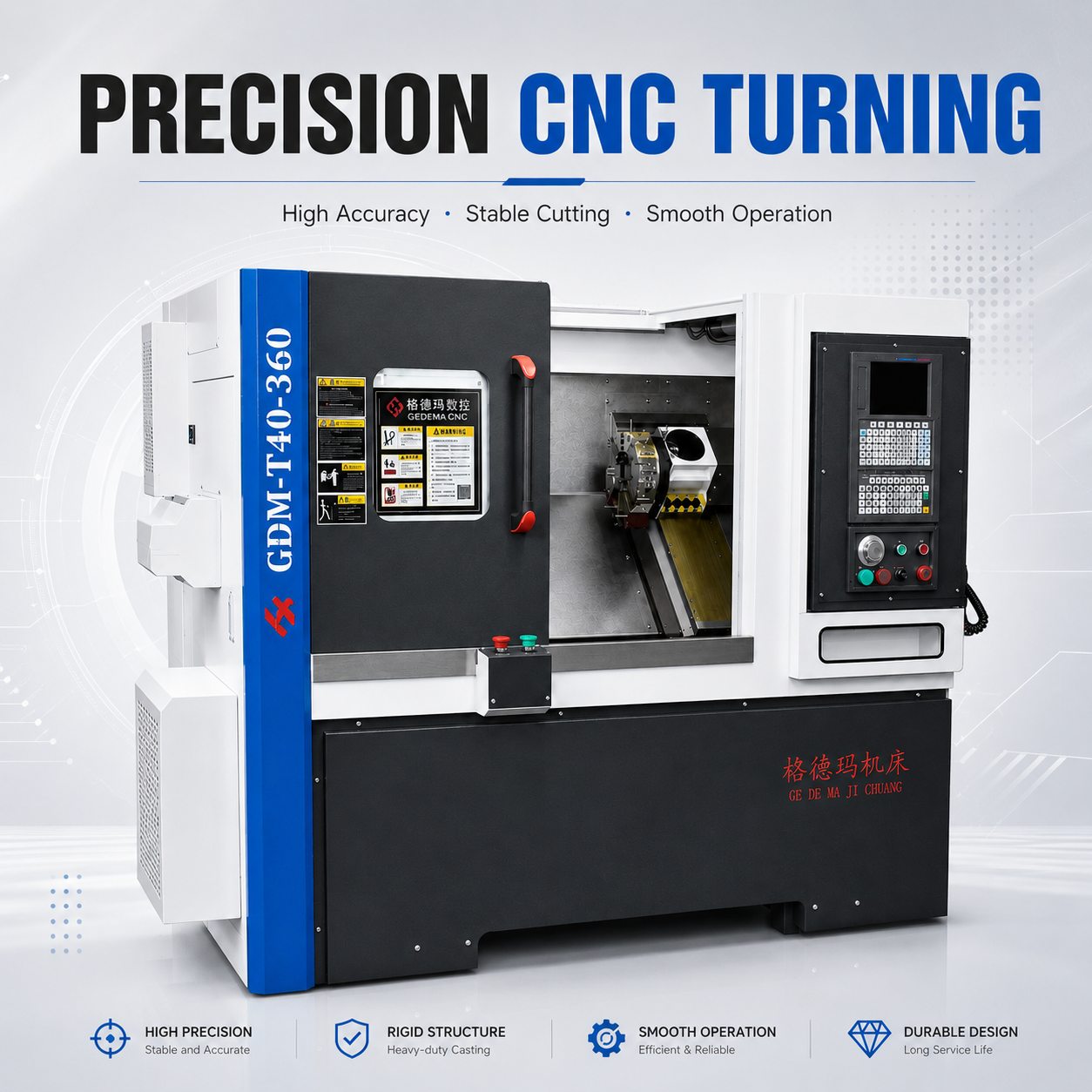

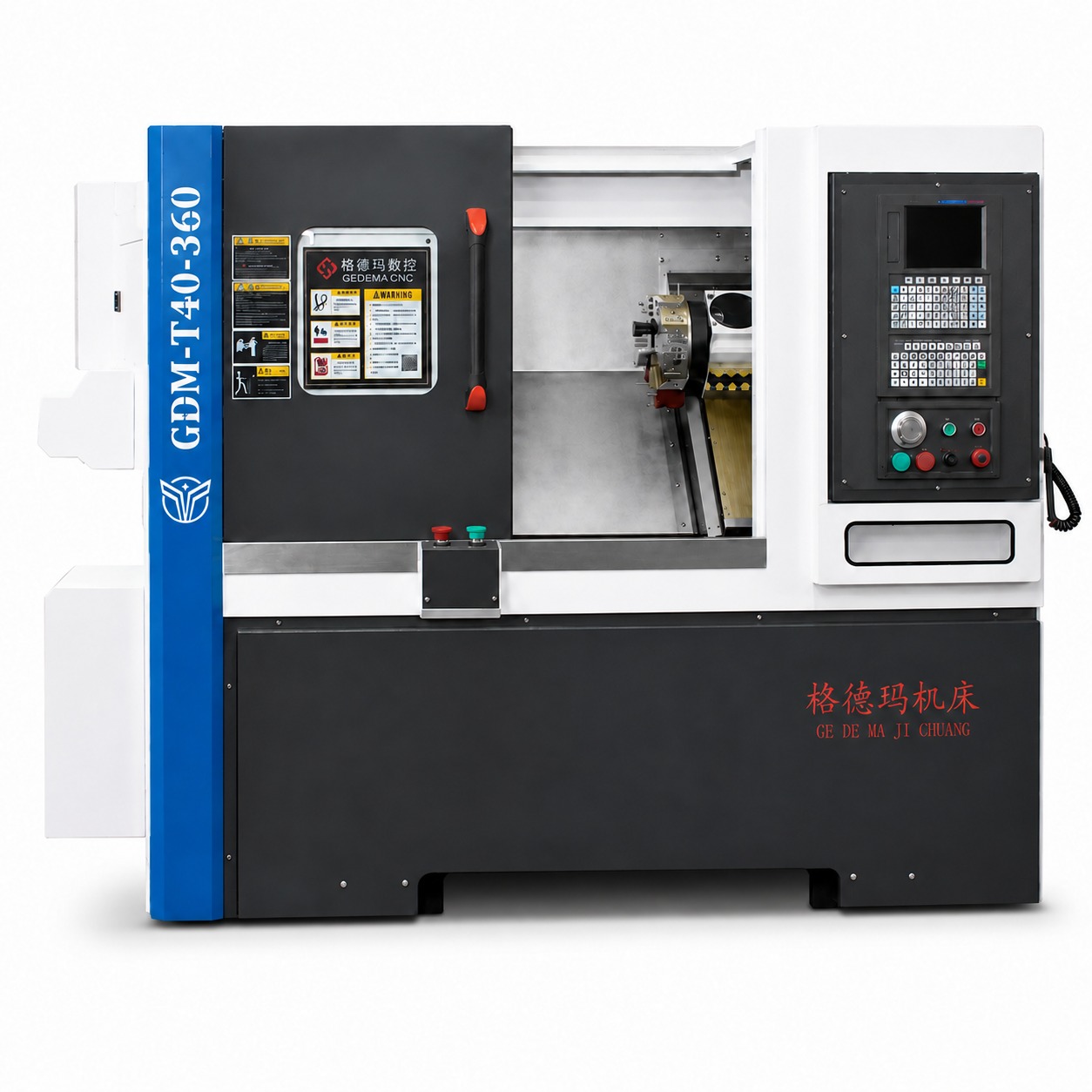

Slant-bed Turret CNC Lathe(GDM-T40-360D)

All products can be customized.

Technical Specifications:
Model: GDM-T40-360D
Maximum Machining Diameter: 150 mm
Maximum Bar Capacity (Diameter): φ40 mm
Maximum Machining Length: 320 mm
Spindle Speed ​​Range: 100–3500 rpm (Spindle types: integrated spindle unit, built-in motor spindle, or mechanical spindle)
Spindle Through-Hole Diameter: 56 mm
Maximum Spindle Speed: 3500 rpm
Spindle Nose Specification: A2-5
Main Motor Power: 3.7–5.5 kW
Maximum Swing Diameter: 500 mm
Workpiece Clamping Method: Hydraulic 40-type collet
X-axis Maximum Travel: 750 mm
Z-axis Maximum Travel: 380 mm
X/Z-axis Rapid Traverse Speed: 20,000 mm/min
Distance Between Centers: N/A
X/Z-axis Repeat Positioning Accuracy: 0.005 mm

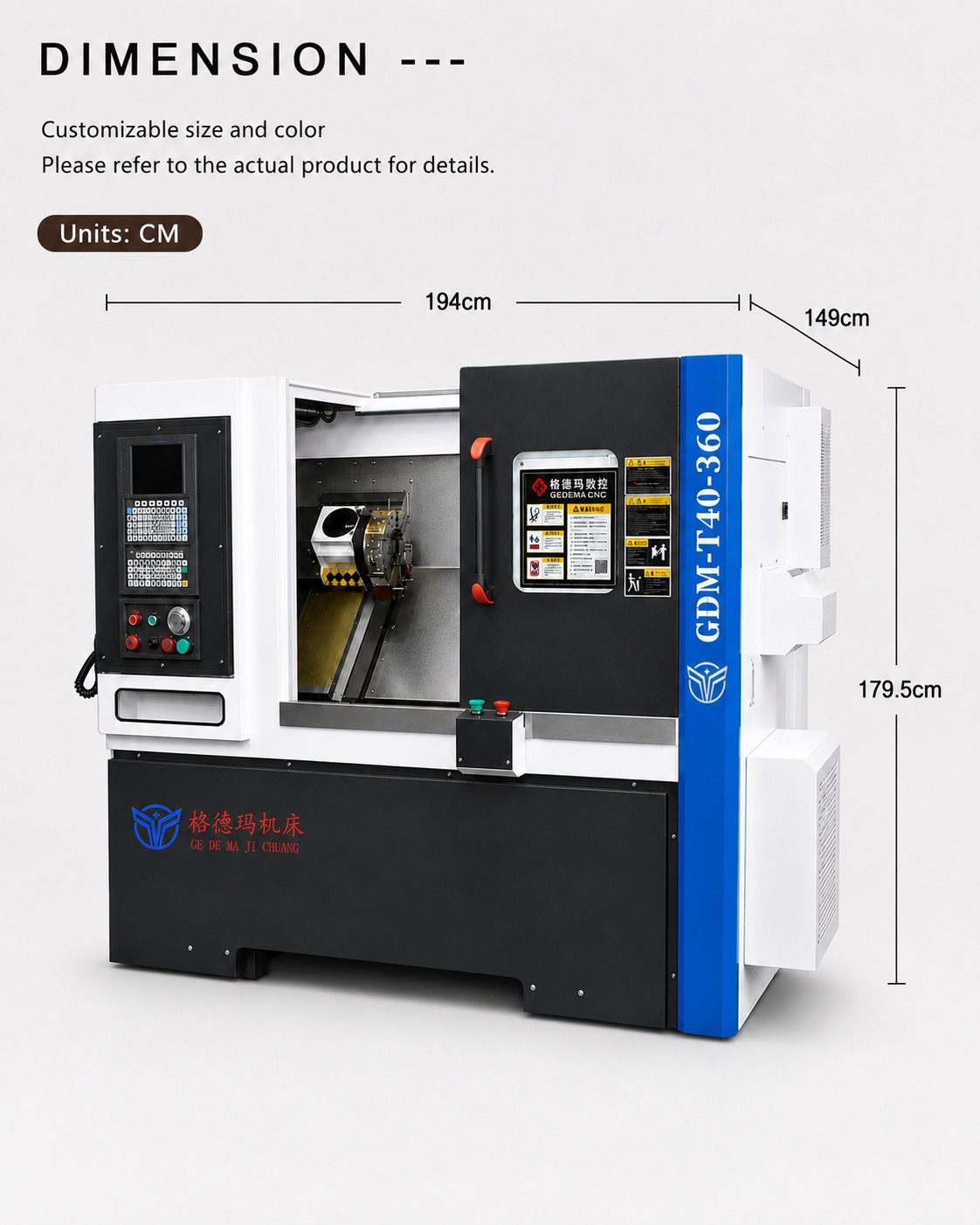

Tooling System: Turret; Machine Dimensions: 1940 × 1490 × 1795 mm
Tailstock Quill Maximum Travel: N/A
Tailstock Quill Morse Taper: N/A; Height from Machine Base to Spindle Centerline: 1050 mm
Machine Weight: Approx. 1850 kg
